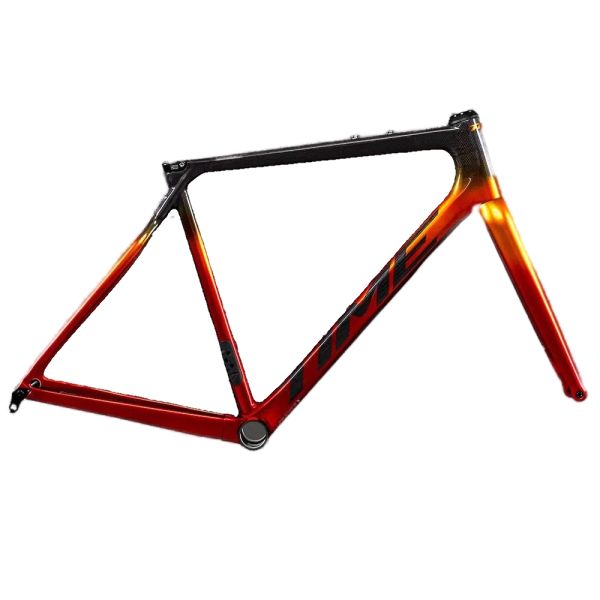

2024 TIME ADHX 45 Frameset

Color: Vertical Red

We have an unfair advantage when designing our full-on gravel slayer, the ADHX 45.

Our proprietary braided carbon fiber construction is the fundamental technology of all TIME bikes. Made possible with resin transfer molding and perfected over our 30-year history, this process allows us to engineer an incredibly durable and exceptionally compliant gravel bike. The ADHX 45 delivers the lively, responsive feel that has made TIME bikes legendary, even on Paris-Roubaix's iconic, impossibly rough cobblestones.

What's Included with the frameset:

• DEDA S DCR Headset for Semi & Fully-Integrated Cockpits
• Front and Rear Thru Axles
• Alloy Bottle Bolts
• Integrated Seatpost Clamp
• Derailleur Hanger
• Single Cover and Drivetrain Conversion Kit

Specifications:

• FRAME MATERIAL: BCS Carbon Fiber - Dyneema® Enhanced
• FORK STEERER TUBE: Tapered 1-1/8" to 1-1/2"
• HEADSET BEARINGS: Top and Bottom 1-1/2" (with internal routing compression ring)
• BOTTOM BRACKET: PF BB386
• FRONT DERAILLEUR: 1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit
• REAR DERAILLEUR: Standard Mount
• SEATPOST DIAMETER: ø27.2mm
• SEATPOST CLAMP: Proprietary ADHX Alloy
• SHIFTING: Compatible with Electronic and Standard Shifting Systems
• BRAKE TYPE: Front and Rear Flat Mount Disc
• DISC HUB STANDARD: 12x100mm F, 12x142mm R
• ROTOR SIZE: 140/160mm with Adapter
• THRU AXLES: 12x120x1.5mm Pitch F, 12x159x1.5 Pitch R
• WHEEL SIZE: 700c/650b

  Specifications subject to change
